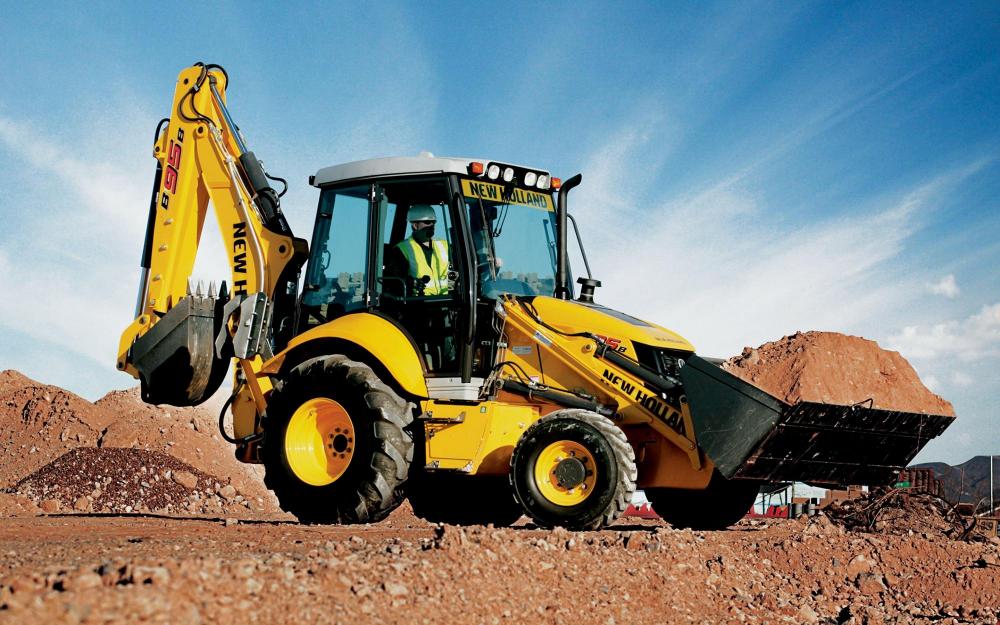

New Holland Unveils the Compact B95C Backhoe

What Is It Used For?

The New Holland B95C backhoe is designed for various tasks, including loading, grading, lifting, excavating, digging, post-hole boring, and more. It's a versatile machine ideal for industries like agriculture, horticulture, landscaping, drainage, and irrigation—any business that needs cost-effective, multi-functional equipment.

Engine Specifications

At the heart of the B95C is the Industrial F5H 3.4-liter, four-cylinder engine, the same engine proven in New Holland’s T5 tractors. This engine meets Tier 4B emission standards, helping to reduce environmental impact. It also features an advanced throttle control system, allowing operators to fine-tune engine response from smooth to fast, ensuring superior power and performance. New Holland continues its legacy of producing high-performance engines and easy servicing.

Reinforced Chassis

To meet the demands of tough jobs, the B95C boasts an improved full-frame chassis. This design allows the backhoe to handle various loading tasks by channelling stress through the strong frame rather than putting strain on the engine or transmission. This results in enhanced durability and stability, which is critical for heavy-duty applications.

Lifting Capacity

The B95C loader backhoes are equipped with a straight-arm loader linkage, which transfers the bucket’s load directly to the tractor’s main frame. This design enhances lifting capacity and improves bucket rotation and breakout force. Depending on operational needs, customers can choose from front bucket capacities of 0.9m³, 1.0m³, or 1.15m³. The B95C can lift between 3380kg and 3550kg and raise loads to a height of up to 3520mm.

Digging Capabilities

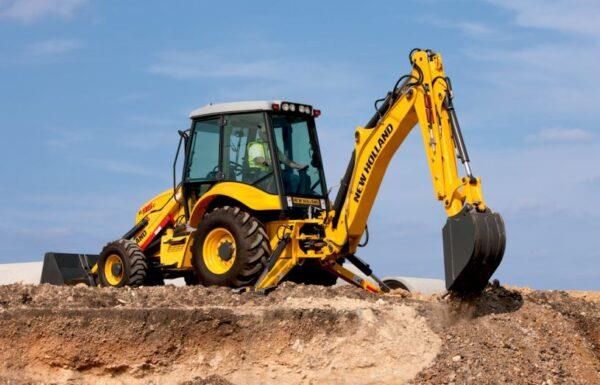

Thanks to its curved boom design—borrowed from larger excavators—the B95C offers exceptional digging performance. The design improves visibility, reduces digging effort, and enhances overall efficiency. Dual swing cylinders provide smooth arm movement for quicker positioning over trenches while increasing the machine’s stability. The backhoe boasts a digging depth of 4665mm, extendable to 5880mm with the telescopic dipper.

Enhanced Comfort

New Holland has upgraded the cabin on the B95C, delivering improved ergonomics, ample space, and user-friendly features. Thanks to the well-thought-out design, operators can switch between loader and backhoe modes easily. The cabin also provides excellent all-around visibility, superior heating and ventilation, and low noise and vibration levels, ensuring a comfortable working environment throughout the day.
